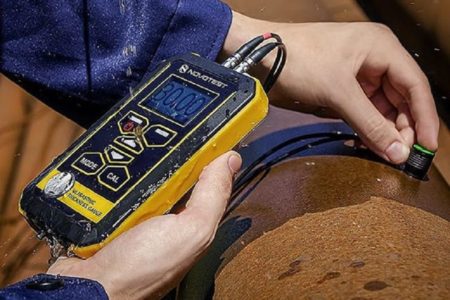

Name: Spessimetro UT-1M-IP
SKU: 1594
Price: 1.00 EUR
Availability: InStock

Descrizione

È ideato per la misurazione non distruttiva (NDT) dello spessore di pareti in metalli ferrosi e non ferrosi, leghe, plastiche, vetro e materiali compositi, consentendo il controllo della corrosione e dell’usura su serbatoi, tubazioni, strutture navali e recipienti in pressione.

Caratteristiche e Vantaggi Operativi

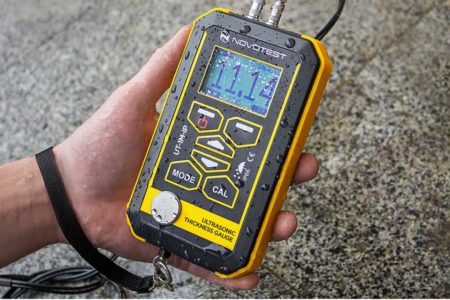

Protezione Industriale IP65/IP67: Scocca ultra-resistente idonea per cantieri navali, piattaforme off-shore, raffinerie e ambienti ad elevata umidità.
A-Scan integrato (opzionale): Consente la visualizzazione grafica della forma d’onda per eliminare le false letture causate da inclusioni o discontinuità interne.
Modalità E-E (Echo-Echo): Permette di misurare lo spessore effettivo del metallo sottostante senza asportare lo strato di vernice o il rivestimento protettivo superficiale.
Ampia Gamma di Sonde Compatibili: Utilizza trasduttori mono-elemento e doppio elemento (da $1\text{ MHz}$ a $10\text{ MHz}$ ) per coprire sia spessori molto sottili che materiali ad attenuazione elevata.

Il dispositivo è conforme alla norma ASTM E797 per la misurazione dello spessore mediante metodo manuale di contatto ad ultrasuoni ad impulso ultrasonico.

Ha la modalità Echo-Echo. Utilizzando una speciale sonda Echo-Echo, consente di misurare lo spessore dei metalli, attraverso rivestimenti di vernice (fino a 1 mm).

Normative di Riferimento

UNI EN 14127: Prove non distruttive – Misurazione dello spessore mediante ultrasuoni
ASTM E797: Standard Practice for Measuring Thickness by Manual Ultrasonic Pulse-Echo Contact Method

Specifiche tecniche

Probe type range for steel, mm: Probe 10MHz – P112-10-2×3 Probe 10MHz – P112-10-6 / 2 Probe 5MHz – P112-5-10 / 2 Probe 2,5MHz – P112-2,5-12 / 2 Probe 2MHz – P112-2-20 / 2 Probe 1,25MHz – P112-1.25-20 / 2	0.4-15 0.45-300 0.8-500 2.5-1000 3-1200 4-1500
Probe dimensions, mm: Probe 10MHz – P112-10-2×3 Probe 10MHz – P112-10-6 / 2 Probe 5MHz – P112-5-10 / 2 Probe 2,5MHz – P112-2,5-12 / 2 Probe 2MHz – P112-2-20 / 2 Probe 1,25MHz – P112-1.25-20 / 2	4×9×60 D12×15 D17×20 D20×21 D30×28 D30×35
Dimensions of probe contact area/crystal, mm: Probe 10MHz – P112-10-2×3 Probe 10MHz – P112-10-6 / 2 Probe 5MHz – P112-5-10 / 2 Probe 2,5MHz – P112-2,5-12 / 2 Probe 2MHz – P112-2-20 / 2 Probe 1,25MHz – P112-1.25-20 / 2	2×7/2×3 D9/D6 D14/D10 D16/D12 D24/D20 D24/D20
Optional probes: 5MHz high-temperature probe (echo) 10/2 2,5MHz probe (echo-echo) 12/2 for through coating 5MHz probe (echo-echo) 10/2 for through coating 10MHz probe (echo-echo) 6/2 for through coating 5MHz probe (echo-echo) 10/2 for through coating, underwater, 10 m cable 5MHz probe (echo-echo) 10/2 for through coating, underwater, 20 m cable 5MHz probe (echo-echo) 10/2 for through coating, underwater, 30 m cable	range 0,8 – 300 mm, surface temperature up to 250 °С/482 °F range 6 – 30 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 2 – 12 mm, coating thickness range – up to 0,6 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm
Compatible probe types	Ultrasonic, dual-element, longitudinal waves (including probes of other manufacturers)
Compatibility with Active EMAT Transducer EMAT-A1	No
Probe calibrations (V-path, TVG, etc.)	factory for NOVOTEST probes users for probes of other manufacturers
Probe cable connector type	2 Lemo 00
Probe cable length, m	1,2
Measurement scales	mm (m/s) inch (inch/μs)
Measurement resolution, mm/inch	0.01/0.001 (0.01/0.0001 by request)
Basic measurement accuracy, mm	± (0,01 T+0.05) (*For range 0.8 – 300 mm)
Gain range, dB	± 20
Response time, with no more than, s	1
Setting range of the ultrasonic velocity, m / s	1000-17000
Preset velocities for materials	Steel (8 different grades), Aluminum, Iron, Cast Iron, Zinc, Chromium, Copper, Brass, Bronze, Silver, Gold, Nickel, Tungsten, Tin, Lead, Molybdenum, Manganese, Magnesium, Rubber, Polystyrene, Plexiglas, Capron, Caprolon, ED-5, Ebonite, Porcelain, Teflon, Textolite, Silicate Glass, Acrylic glass, User
Operating modes	Normal B-scan Control mode
Standards	ASTM E797 EN 14127 EN15317
Body type / Dust and moisture protection level	Plastic, sealed IP65 Optionally water immersion up to 1m deep for 30 min (IP67)
Calibration thickness block on the body	6 mm (Steel/~6080 m/s)
PC cable connection	Online – NOVOTEST.INFO/USB-connect Offline – NOVOTEST USB-Connect

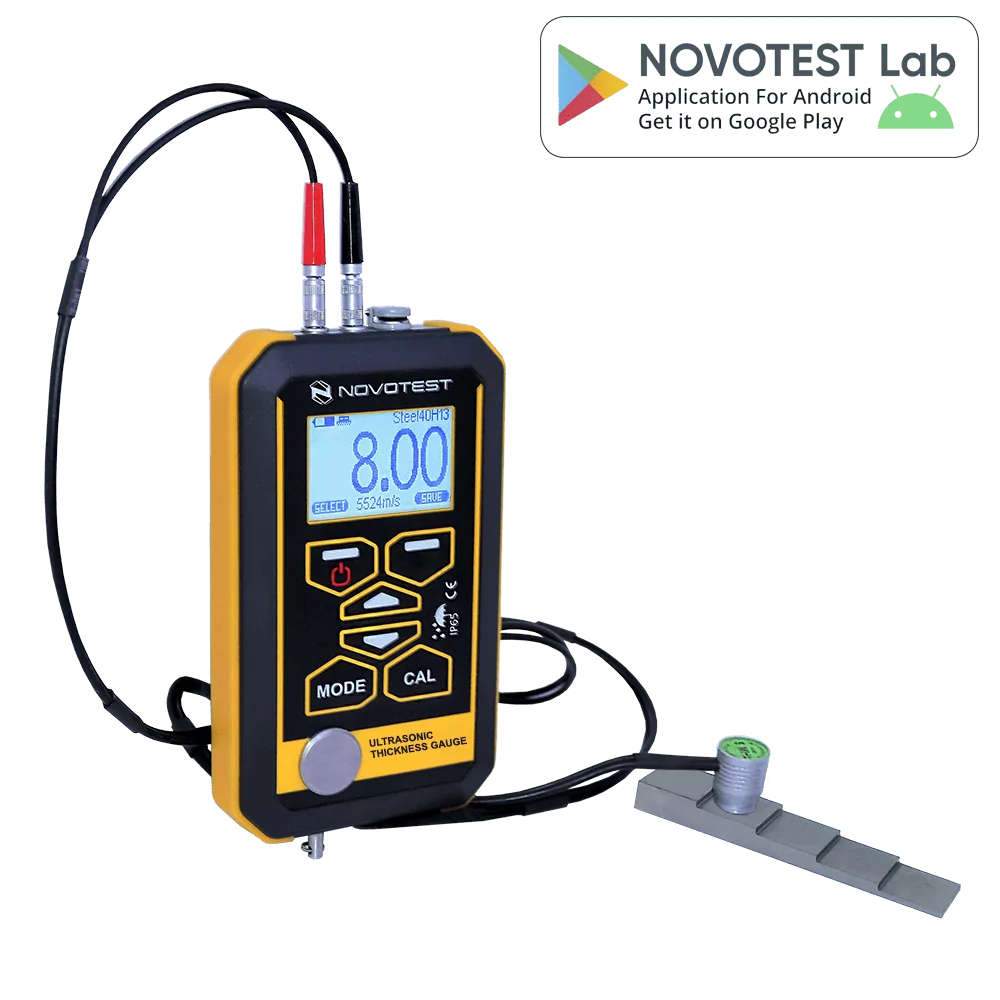

Wireless connection with Android gadgets via NOVOTEST Lab App	UT-1M-IP – No UT-1M-IP (Lab) – Yes
Storage capacity of measurement results	UT-1M-IP – 128 UT-1M-IP (Lab) – 128 in the device + in NOVOTEST Lab App limited only by the memory of the Android gadgets
Measurement archives	Device menu Android smartphone/tablet Cloud storage/PC PDF Excel (CSV)
Menu languages	English, Spanish, Ukrainian, Russian (other languages optional)
Operating environment	Temperature:-20°C~50°C Humidity: 30%~80%R.H.
Power supply	DC 4.5V (3 pcs standard batteries AA)
Time of continuous work hours, not less, h	up to 200
Charging	5V USB charger
Weight of electronic unit with batteries, no more, kg	0.2
Overall dimensions, mm	120x60x25
Package weight, kg	1.5
Package dimensions, cm	332710
Documents	Operation manual UT-1M-IP Quick guide UT-1M/-IP Brochure UT-1M/-2A
Country of origin	Made in Ukraine (Europe)
Warranty	Basic – 12 months for electronic unit – 6 months for probes Extended (optional) – up to 3 years

General comparative chart of all models NOVOTEST ultrasonic thickness gauges (without UT-3M-EMAT)

Model name	UT-2A	UT-1M	UT-1M-IP	UT-1M-ST
Measuring thicknesses range for steel, mm	0,4 – 1500 (depends on probe)	0,45 – 1500 (depends on probe)
Resolution, mm	0,01
Basic measurement accuracy, mm	± (0,01*T+0,05)
Basic probes / range for steel	2,5 MHz / 2,5 – 1000 mm 5 MHz / 0,8 – 300 mm 10 MHz / 0,45 – 75 mm
Optional probes / range for steel	1,25 MHz / 4 – 1500 mm 2 MHz / 3 – 1200 mm High-temperature 5MHz (up to 250 °С) / 0,8 – 300 mm Echo-Echo 5MHz for through-coating measurements / 3,5 – 26 mm
Compatibility with Active EMAT Transducer EMAT-A1	Yes	No
Compatible probe types	Dual-element Single-element	Dual-element
Operating modes	Normal A-scan B-scan Manual mode Control mode	Normal B-scan Control mode
Measurement methods	Echo Echo-Echo Peak-Peak Zero-crossing	Echo Echo-Echo
Measurement units	mm inch
Display	Color, 3,5 inch, 480*320	Monochrome, 2,5 inch, 128*64
Menu languages	English Ukrainian Russian (other languages optional)	English Spanish Ukrainian Russian (other languages optional)
Body type/ Dust and moisture protection level	Metal, durable /Standard for shop and field operation	Plastic, with shockproof silicone case / Standard for shop and field operation	Plastic, sealed /High – optionally water immersion up to 1m deep for 30 min	Metal, durable /Standard for shop and field operation
Saving of the settings for different probes	Yes
Compatibility with probes of other manufacturers	Yes
V-path correction and TVG adjusting for the user’s probes	Yes
Storage of measurement results	7000 and more (Limited only by the memory card)	128	128	128
PC cable connection (via www.novotest.info)	Yes
Smartphone Wireless connection (via NOVOTEST Lab)	No	Optional	Optional	No
Charger type	Any USB socket (charger adapter, PC, power bank, etc.)	External charger for batteries	Any USB socket (charger adapter, PC, power bank, etc.)	External charger for batteries
Battery	Built-in Li-ion	2pcs standard АА batteries	3pcs standard АА batteries	2pcs standard АА batteries
Electronic unit weight, no more, kg	0,5	0,25	0,35	0,35
Dimensions (L x W x H), mm	165x90x50	122х76х37	160х90х28	130х90х40
Minimum time of continuous work, h	10	25	25	25
Operating temperature range, ° C	-20 to +40
