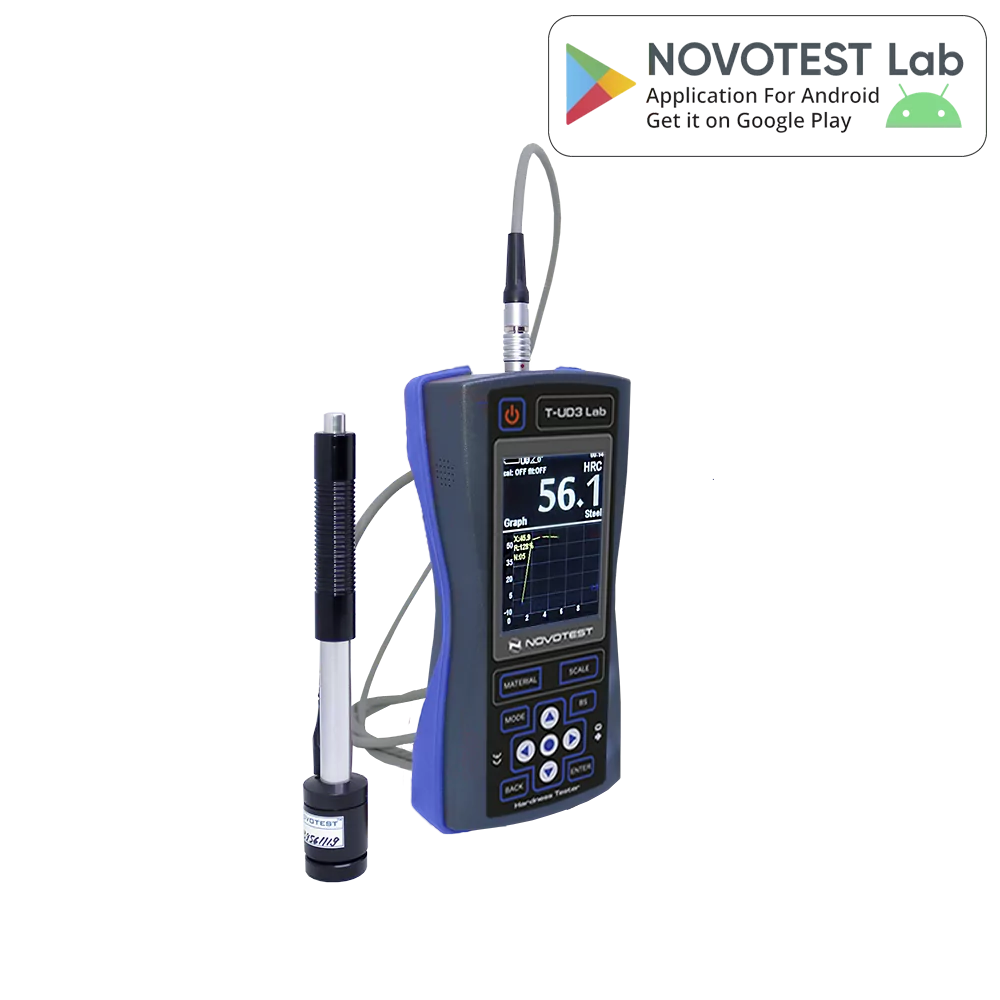

Descrizione

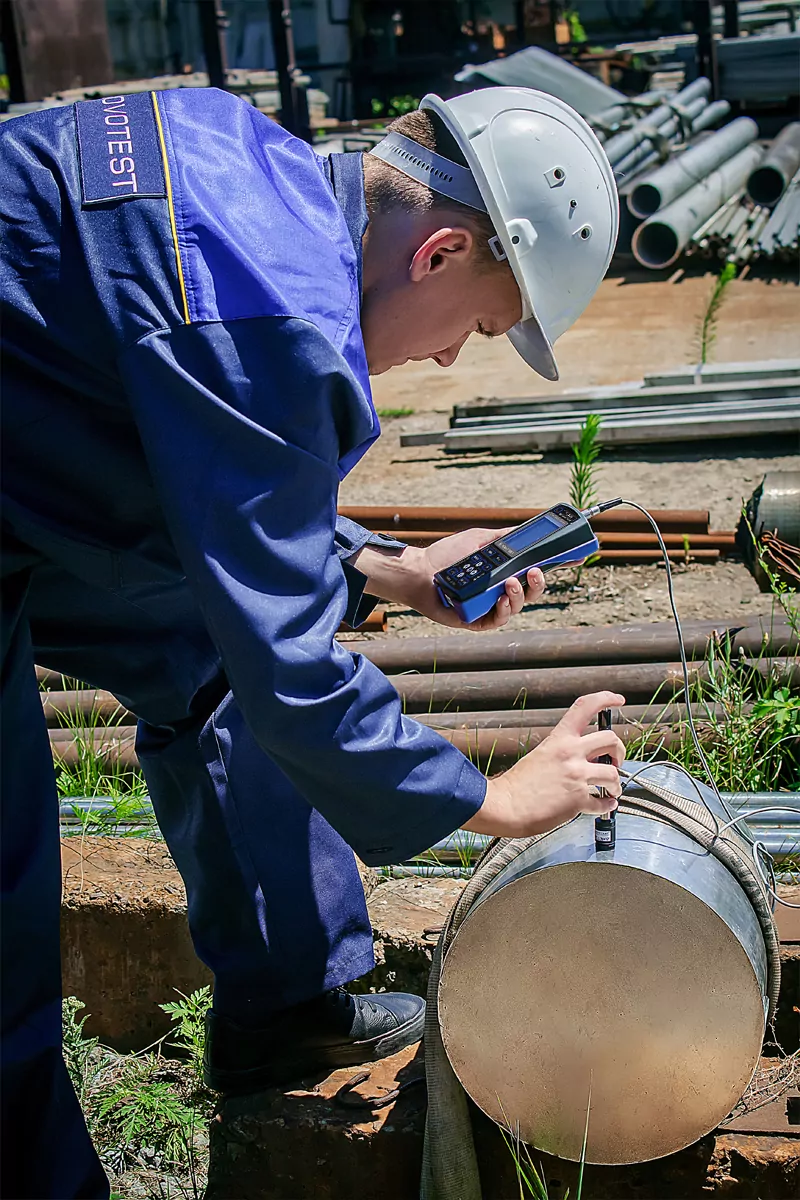

Lo strumento ha un alloggiamento sigillato con paraurti protettivo in gomma, ideale per l’utilizzo in officina e in condizioni di campo con elevata umidità, polvere, ecc. Il tester di durezza è dotato di un display antigelo che consente all’utente di utilizzare il dispositivo in qualsiasi stagione e in tutte le zone climatiche della Terra.
Specifiche Tecniche:
Leeb probe types: D, DC, DL, C, D+15, E, G
Measuring range: HV:230~940; HRC:20~70; HB:90~650. Tensile strength, MPa 370~1740
Measuring accuracy: HV: ±3%HV; HRC: ±1.5%HRC; HB: ±3%HB
Standards: ASTM A1038, ASTM A956, ASTM E140
Indenter: Hardened ball (Leeb)
Measuring direction: Any direction 360°
Data storage: Limited only by the memory card up to 32Gb
Communication: Upload data to PC and export as a spreadsheet (USB cable and software included)
Hardness scale: Leeb probe – HRC, HB, HV, HRB, MPa
Additional custom scales for calibration.
Materials: Dynamic (Leeb) pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper.
Additional custom materials for calibration.
Data display: Angle (Leeb), Single test result, Max, Min, Average of tests, Number of tests, Deviation, Var. coeff, Histogram, Signal and Smart Mode (Filter of incorrect measurements).
Indication: Color LCD display (320×240)
Operating environment: Temperature: -20°C~40°C; Humidity: 30%~80%R.H.
Power supply: DC 4,5V (3 pcs batteries AA)
Instrument dimensions: 160x75x30mm
Net weight: Approx. 0.3kg (without probe)
Battery life: Approx. 10 hours.
