Durometro T-U3

Descrizione

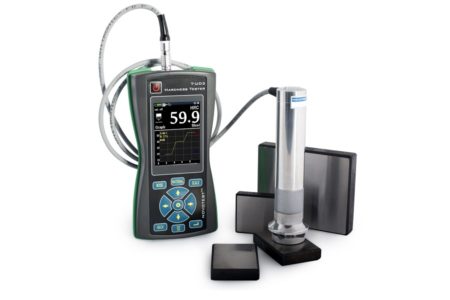

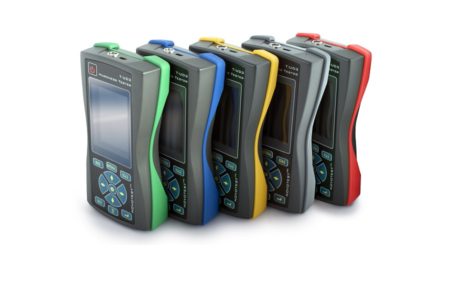

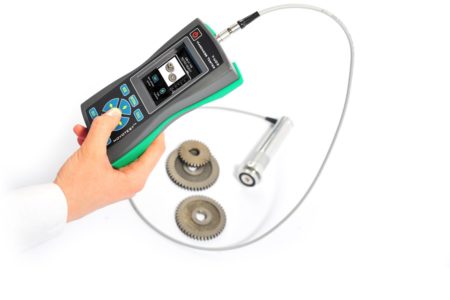

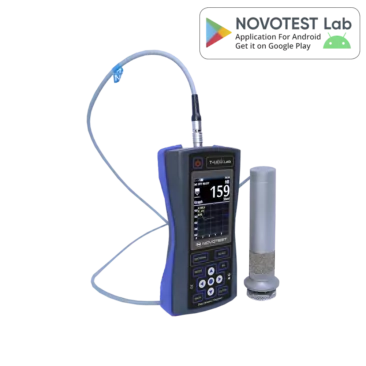

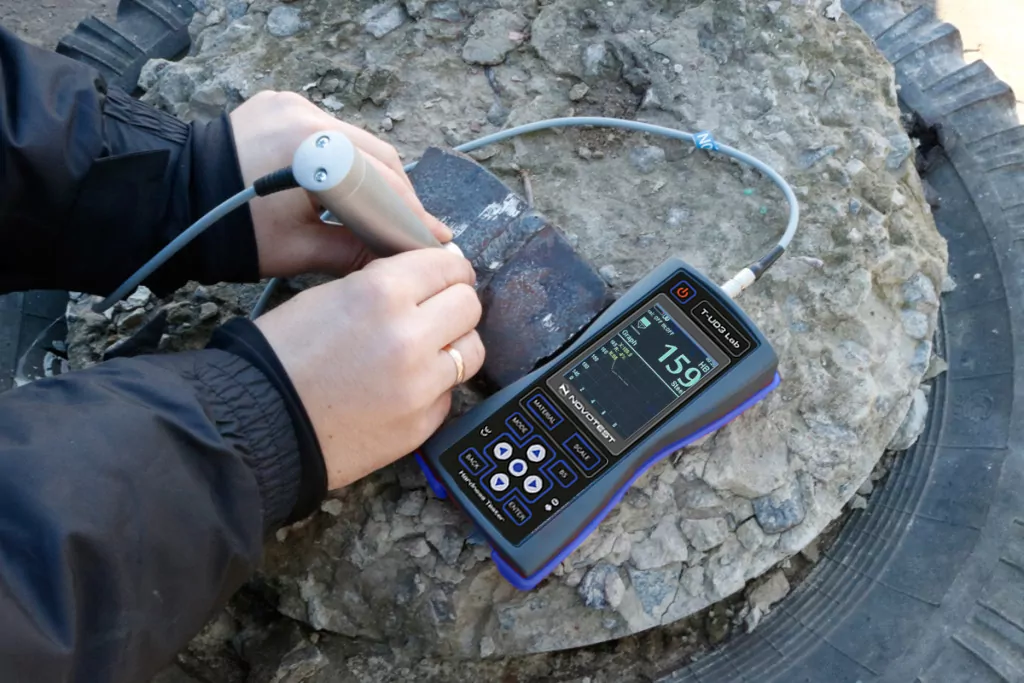

Il tester di durezza UCI NOVOTEST T-U3 ha la custodia sigillata con strisce di protezione in gomma, ideale per l’utilizzo in officina e in condizioni di campo con elevata umidità, polvere, ecc. Il tester di durezza è dotato di un display antiscasso che consente all’utente di utilizzare il dispositivo in qualsiasi stagione e in qualsiasi zona climatica della Terra. Il dispositivo dispone di un software per PC con un’interfaccia confortevole ed intuitiva.

Specifiche:

UCI probe types: 1kgf (10N) 2.2 lbf, 5kgf (50N) 11lbf, 10kgf (98N) 22lbf;
Measuring range: HV:230~940; HRC:20~70; HB:90~650. Tensile strength, MPa 370~1740;
Measuring accuracy: HV:±3%HV; HRC:±1.5%HRC; HB:±3%HB;
Standards: ASTM A1038, ASTM A956, ASTM E140;
Indenter Diamond indenter: (UCI), Hardened ball (Leeb);
Measuring direction: Any direction 360°;
Data storage: Limited only by the memory card up to 32Gb;
Communication: Upload data to PC and export as a spreadsheet (USB cable and software included);
Hardness scale: UCI probe – HRC, HB, HV Additional custom scales for calibration. Materials: Ultrasonic (UCI) probe – pre-calibrated for steel. Additional custom materials for calibration;
Data display: Load applied/contact (UCI), Single test result, Max, Min, Average of tests, Number of tests, Deviation, Var. coeff, Histogram, Signal and Smart Mode (Filter of incorrect measurements);
Indication: Color LCD display (320×240);
Operating environment: Temperature:-20°C~40°C; Humidity: 30%~80%R.H.;
Power supply: DC 4,5V (3 pcs batteries AA);
Instrument dimensions: 160x75x30mm Net weight Approx. 0.3kg (without probe);
Battery life: Approx. 10 hours.
